Capacitive Touch Keyboard Extension with Leonardo

DFRobot Nov 06 2019 760

Note: This article copied from hackster.io Author: Alex Wulff

Extend the functionality of your current keyboard with custom capacitive touch keys.

Things used in this project

Hardware components

DFRobot Gravity Digital Capacitive Touch Sensor ×4

Arduino Leonardo ×1

Male-to-Male Jumper Wires ×1

Breadboard (generic) ×1

Story

Introduction

The Arduino Leonardo is a wonderful microcontroller. In addition to maintaining the same form factor as the venerable Uno, it also has the ability to serve as a USB keyboard. This means that you can program your Leonardo to press specific keys or print strings in response to various stimuli.

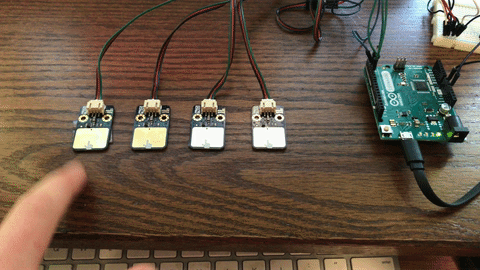

Pair it with a few capacitive touchpads and you can produce a device that essentially adds four fully-programmable keys to your workspace! Use each key to type commonly-used phrases, perform specific macros, press hard-to-use key combinations, and so much more! Let's get started.

Step 1: Assembly

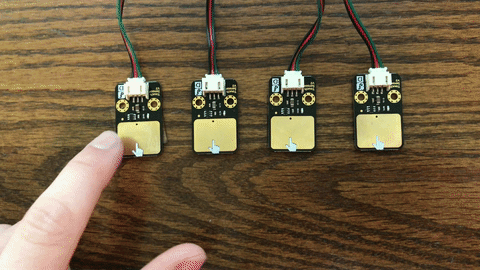

This part is exceedingly simple. All you need to do is insert the included JST cables into the sockets and begin wiring. All the black wires should be connected to ground, the red wires to 5V, and the green wires to pins 2, 3, 4, and 5. The Leonardo only has a few power pins so it's helpful to connect the ground and VCC wires together using a breadboard. For simplicity's sake, I recommend that you arrange the pads in numerical order, starting with the pad connected to pin 2 on the left and ending with pin 5 on the right.
I also used some double-sided tape to hold the pads in place. You could accomplish this with a whole number of different household products.

Step 2: Example of Sketch

#include <Keyboard.h>

void setup(){
 pinMode(2, INPUT);
 pinMode(3, INPUT);
 pinMode(4, INPUT);
 pinMode(5, INPUT);
 Keyboard.begin();
}

void loop(){
 checkPress(2, 'd');
 checkPress(3, 'f');
 checkPress(4, 'g');
 checkPress(5, 'h');
}

void checkPress(int pin, char key) {
 if (digitalRead(pin)) {
   Keyboard.press(key);
 }
 else {
   Keyboard.release(key);
 }
}

Try uploading the above software to your Leonardo. Click on an empty text box and try pressing the pads to ensure that each one outputs a character. Go to http://www.apronus.com/music/flashpiano.htm and you can use each of the keys to play chords!

Step 3: Creating Hotkeys

#include <Keyboard.h>

const int delayValue = 100;
const char cmdKey = KEY_LEFT_GUI;

void setup(){
 pinMode(2, INPUT);
 pinMode(3, INPUT);
 pinMode(4, INPUT);
 pinMode(5, INPUT);
 Keyboard.begin();
}

void loop(){
 if (digitalRead(2)) {
   Keyboard.press(cmdKey);
   Keyboard.press('c');
   delay(delayValue);
   Keyboard.releaseAll();
   while(digitalRead(2));
 }
 if (digitalRead(3)) {
   Keyboard.press(cmdKey);
   Keyboard.press('v');
   delay(delayValue);
   Keyboard.releaseAll();
   while(digitalRead(3));
 }
 if (digitalRead(4)) {
   Keyboard.press(cmdKey);
   Keyboard.press('n');
   delay(delayValue);
   Keyboard.releaseAll();
   while(digitalRead(4));
 }
 if (digitalRead(5)) {
   Keyboard.press(cmdKey);
   Keyboard.press('z');
   delay(delayValue);
   Keyboard.releaseAll();
   while(digitalRead(5));
 }
}

The above sketch allows Mac users to use their pads for some common keyboard combinations.

Step 4: Going Further

Of course, simple key combinations and strings are not the only uses for such a system. Coupled with a program such as Keyboard Maestro, you could get your keys to perform extremely complex tasks. I set up some of my keys to lock my computer, turn sound on/off, and open specific programs! Consider it a fully-programmable computer interface that you can design for any purpose.

That's it! I'd love to hear what you used this project for, so post a comment below. If you want to see more of my work you can visit www.AlexWulff.com

Code

PrintChars (Arduino)

#include <Keyboard.h>

void setup(){
  pinMode(2, INPUT);
  pinMode(3, INPUT);
  pinMode(4, INPUT);
  pinMode(5, INPUT);
  Keyboard.begin();
}

void loop(){
  checkPress(2, 'd');
  checkPress(3, 'f');
  checkPress(4, 'g');
  checkPress(5, 'h');
}

void checkPress(int pin, char key) {
  if (digitalRead(pin)) {
    Keyboard.press(key);
  }

  else {
    Keyboard.release(key);
  }
}

Hotkeys (Arduino)

#include <Keyboard.h>

const int delayValue = 100;
const char cmdKey = KEY_LEFT_GUI;

void setup(){
  pinMode(2, INPUT);
  pinMode(3, INPUT);
  pinMode(4, INPUT);
  pinMode(5, INPUT);
  Keyboard.begin();
}

void loop(){
  if (digitalRead(2)) {
    Keyboard.press(cmdKey);
    Keyboard.press('c');
    delay(delayValue);
    Keyboard.releaseAll();

    while(digitalRead(2));
  }

  if (digitalRead(3)) {
    Keyboard.press(cmdKey);
    Keyboard.press('v');
    delay(delayValue);
    Keyboard.releaseAll();

    while(digitalRead(3));
  }

  if (digitalRead(4)) {
    Keyboard.press(cmdKey);
    Keyboard.press('n');
    delay(delayValue);
    Keyboard.releaseAll();

    while(digitalRead(4));
  }

  if (digitalRead(5)) {
    Keyboard.press(cmdKey);
    Keyboard.press('z');
    delay(delayValue);
    Keyboard.releaseAll();

    while(digitalRead(5));
  }
}
